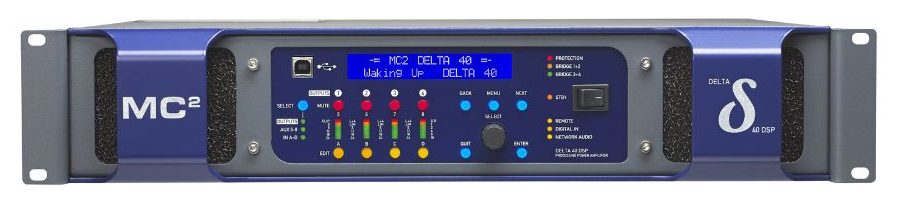

Delta DSP40
Powerful processing features, such as FIR filtering, dynamic eq, and Dante networking (optional), work alongside unique enhancements including 4 local + 4 aux DSP channels (also supplied to the network), meaning a single Delta DSP amplifier can control a stereo 4-way system with no external processing.
Configure and tune using a fast, powerful combination of AudioCore (XTA’s fast efficient control software platform) and DeltaDirect, the bespoke iPad app. Every aspect of a network of amplifiers can be controlled and monitored, wirelessly. USB, direct Ethernet and RS485 control options plus configurable GPIO offer unparalleled flexibility.
All MC² Audio products are covered by a 5 year warranty.
Specifications
Number of channels | 4 |
Output Power: (per channel)* | |
8 ohms | 500W |
4 ohms | 1000W |
2.7 ohms | 1400W |
2 ohms | 1200W |
Output Power: (bridged) | |
8 ohms | 2000W |
4 ohms | 2400W |
THD%: (@1dB below max output) | |
@ 1kHz | < 0.08% |
20Hz to 20kHz | < 0.1% |
Gain / Sensitivity: | |
Gain | 32dB |
Sensitivity (for max power) | 6.2dBu |
Frequency Response: | 20Hz to 20kHz (+ 0/- 0.5dB) |
Power Consumption: (< 50W in standby) | |
Nominal @ 240v into 4 ohms | 2.9A |
Nominal @ 120v into 4 ohms | 6.0A |
Dimensions: (2U) (mm) | |
Amplifier | 88(h) x 482(w) x 428(d) |
Single Box (UK shipping) | 230 x 580 x 560 |
Double Box (outside UK) | 250 x 610 x 600 |
Weight: | |
Amplifier | 10.0kg |
Boxed (shipping weight) | 12.0kg |
*for 100V line drive specifications, please read this document
Downloads
Specifications
Number of channels | 4 |
Output Power: (per channel)* | |
8 ohms | 1000W |
4 ohms | 2000W |
2.7 ohms | 2200W |
2 ohms | 2000W |
Output Power: (bridged) | |
8 ohms | 4000W |
4 ohms | 4000W |
THD%: (@1dB below max output) | |
@ 1kHz | < 0.08% |
20Hz to 20kHz | < 0.1% |
Gain / Sensitivity: | |
Gain | 32dB |
Sensitivity (for max power) | 8.8dBu |
Frequency Response: | 20Hz to 20kHz (+ 0/- 0.5dB) |
Power Consumption: (< 50W in standby) | |
Nominal @ 240v into 4 ohms | 5.0A |
Nominal @ 120v into 4 ohms | 10.4A |
Dimensions: (2U) (mm) | |
Amplifier | 88(h) x 482(w) x 428(d) |
Single Box (UK shipping) | 230 x 580 x 560 |
Double Box (outside UK) | 250 x 610 x 600 |
Weight: | |
Amplifier | 10.3kg |
Boxed (shipping weight) | 11.8kg |
*for 100V line drive specifications, please read this document
Downloads
Specifications
Number of channels | 4 |
Output Power: (per channel)* |
|
8 ohms | 1400W |
4 ohms | 2700W |
2.7 ohms | 3700W |
2 ohms | 3500W |
Output Power: (bridged) | |
8 ohms | 5400W |
4 ohms | 7000W |
THD%: (@1dB below max output) | |
@ 1kHz | < 0.08% |
20Hz to 20kHz | < 0.1% |
Gain / Sensitivity: | |
Gain | 32dB |
Sensitivity (for max power) | 10.7dBu |
Frequency Response: | 20Hz to 20kHz (+ 0/- 0.5dB) |
Power Consumption: (< 50W in standby) | |
Nominal @ 240v into 4 ohms | 7.5A |
Nominal @ 120v into 4 ohms | 15.5A |
Dimensions: (2U) (mm) | |
Amplifier | 88(h) x 482(w) x 428(d) |
Single Box (UK shipping) | 230 x 580 x 560 |
Double Box (outside UK) | 250 x 610 x 600 |
Weight: | |
Amplifier | 10.9kg |
Boxed (shipping weight) | 12.4kg |
*for 100V line drive specifications, please read this document
Downloads
Specifications
2021 sees OSC control implementation within XTA DPA and MC2 Delta DSP products. This allows system operators to gain control from devices such as phones, tablets & mixing consoles – in fact any OSC enabled device can now control an XTA/MC2 powered & processed sound system, all over a standard ethernet network.
This could be preset recall and level control for zones of a night club / hotel, responding to Q-Lab commands in a theatre environment, Mic announcement routing – i.e. routing controlled volume control via Osc mic station or tablet.
Please see below links to the:
-Datasheet (Protocol document)
-Manual (8 channel paging application example)
Zero to Hero XTA/MC2 OSC Implementation video
(Note: Referenced here is TouchOsc Mk1).
Downloads
Specifications
The DPanel-8 is a stand-alone remote panel, operating using the RS485 bus for comms and using either the GPIO port of an MC2 Delta DSP amplifier or XTA DPA amplifier, or an external 5V source for a power supply.
The DPanel-8 is also fitted with an isolated SPDT relay to control external equipment such as projector screens or blind/drape motor systems. It may be programmed “in situ” whilst plugged into Delta or DPA amplifier, or may be connected directly to a PC (via a suitable RS485 adapter) for programming. It uses the “simple remote protocol” embedded in the firmware of all Delta DSP or DPA amplifiers and all 4 or 5 Series XTA products, as well as the DC1048 and Ti1048 installation management systems. Multiple panels may be connected to a system, and the panels can coexist with AudioCore connected via Ethernet or USB.
Programming software is here
https://audiocore.wpengine.com/wp-content/uploads/2019/04/DPanel-Utilities.zip
Downloads
